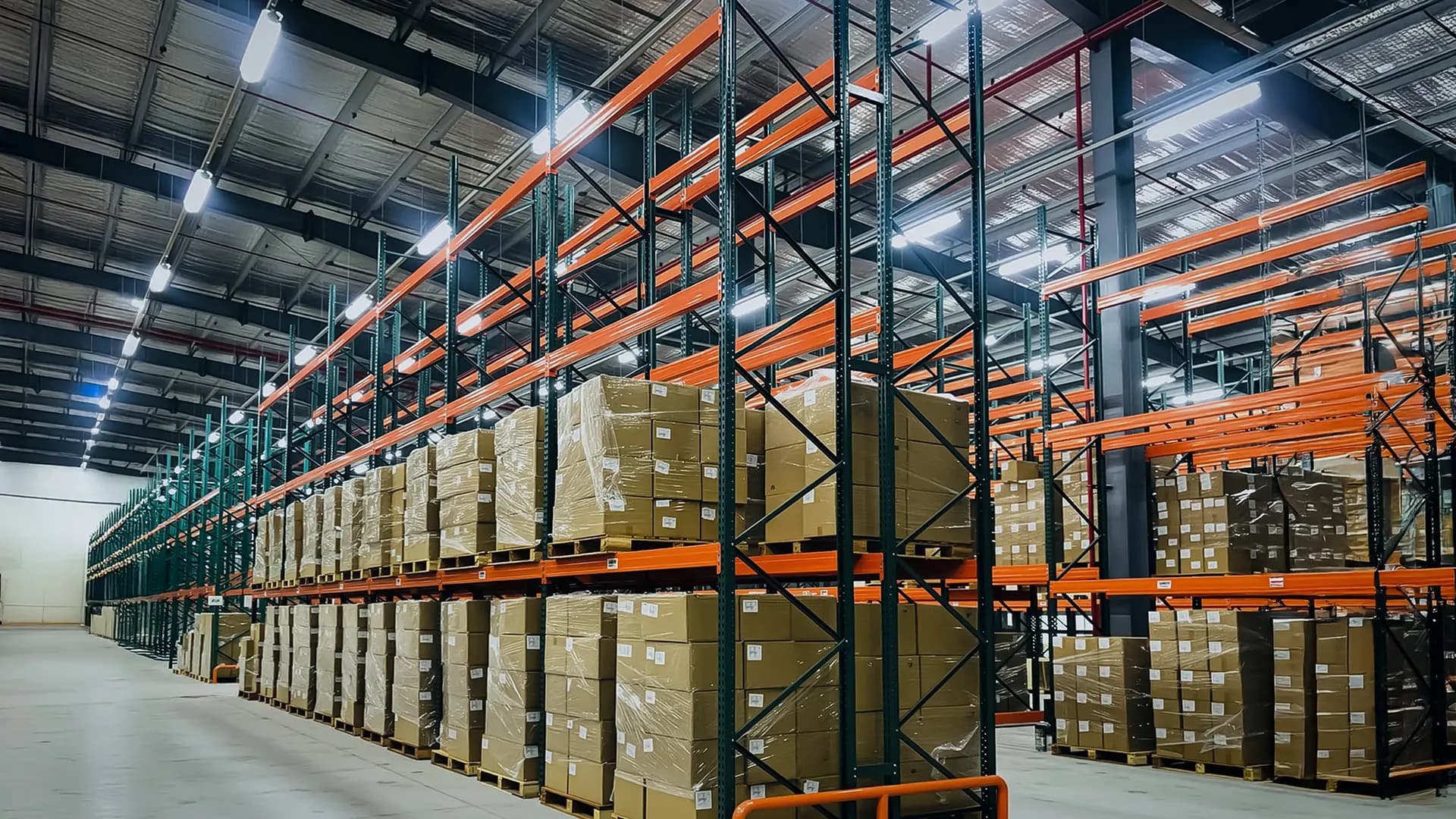

Your inventory changes size, so your racks need to change too. Teardrop uprights let you knock out a safety pin and adjust beam levels in minutes without heavy tools. Keep your Carrollton, TX storage layout flexible and ready for anything.
- ✓Seasonal inventory environments
- ✓Operations handling mixed pallet heights
Throwing heavy loads on teardrop beams without verified ratings will get your Carrollton warehouse shut down. The Building Inspection checks your beam capacities during audits. Reach out to them at (972) 466-3225 or visit 1945 E. Jackson Road, Carrollton, TX 75006 to lock in your paperwork near Valwood Industrial Park, Historic Downtown. SEISMIC: Make sure your teardrop frames have the right baseplates installed to withstand a major seismic event.
Standard Technical Specifications
To assist in your initial facility design, layout, and CAD planning, WDRacks supplies a wide range of standard, durable industrial storage components:
| Component | Standard Range | Carrollton, TX Specs |
|---|---|---|
| Upright Frame Heights | 8 feet to 35+ feet | Tailored to match local clearance height limits in Carrollton. |
| Upright Frame Depths | 36", 42", and 48" depths | Custom-spaced steel frames optimized for TX warehouses. |
| Upright Frame Capacity | Up to 45,000 lbs capacity | Rated up to 45,000 lbs (subject to localized seismic calculations). |
| Step Beam Span Lengths | 4' (48") to 12' (144") spans | In-stock inventory ready for dispatch to your Carrollton facility. |
| Shelf Level Load Capacity | 2,500 lbs to over 8,000 lbs per pair | Standard teardrop and heavy structural options available in TX |
| Seismic Bracing | Configured per localized seismic zone | Engineered baseplates scaled to meet municipal codes in Carrollton. |
| Local Permitting Agency | Local Building & Fire Department | Certified submittals coordinated directly with Carrollton building inspectors. |
Securing Beams with High-Strength Safety Clips
An upward forklift strike will dislodge a beam instantly if it is not secured properly. We supply teardrop beams equipped with factory-installed, heavy-duty safety clips that physically lock the beam to the upright, preventing catastrophic dislodgment during heavy loading.
Universal Standardization of Teardrop Pallet Racking
The standardized punch geometry of teardrop pallet racking allows for highly interoperable supply chain infrastructure scaling. When expanding a storage matrix in a Carrollton distribution center, engineers must validate the metallurgical compatibility and yield strength coefficients of integrated heterogeneous teardrop components to maintain strict safety factors.
- ✓Validate metallurgical compatibility of heterogeneous teardrop components.
- ✓Calculate yield strength coefficients for interoperable beam spans.
- ✓Execute structural safety factor analysis on hybrid racking profiles.
Technical Inquiry: Q&A
Question
"Is the yield strength of cold-rolled teardrop uprights compromised when retrofitting legacy racking systems with modern high-capacity beams in Carrollton, TX?"
Dominic Cruz Director of Pallet Racking Sales
Retrofitting introduces the risk of metallurgical incompatibility. Engineers must verify the gauge thickness and steel tensile strength of the legacy upright frames. If the new high-capacity beams induce stress beyond the original frame's critical buckling threshold, the entire matrix will fail under maximum payload.
Straightforward Pricing in TX
While racking costs often vary based on current steel availability, our goal is always to provide you with the most honest, competitive quote possible. Let our Carrollton team handle the hard work. Click below to get a simple, free estimate.
Teardrop Load Capacity FAQ
Q: Is the teardrop connection actually safe for heavy pallets in Carrollton?
Q: How do I know how much weight my teardrop racks can hold?
Q: What happens if the safety pins are missing on my Carrollton teardrop racks?
