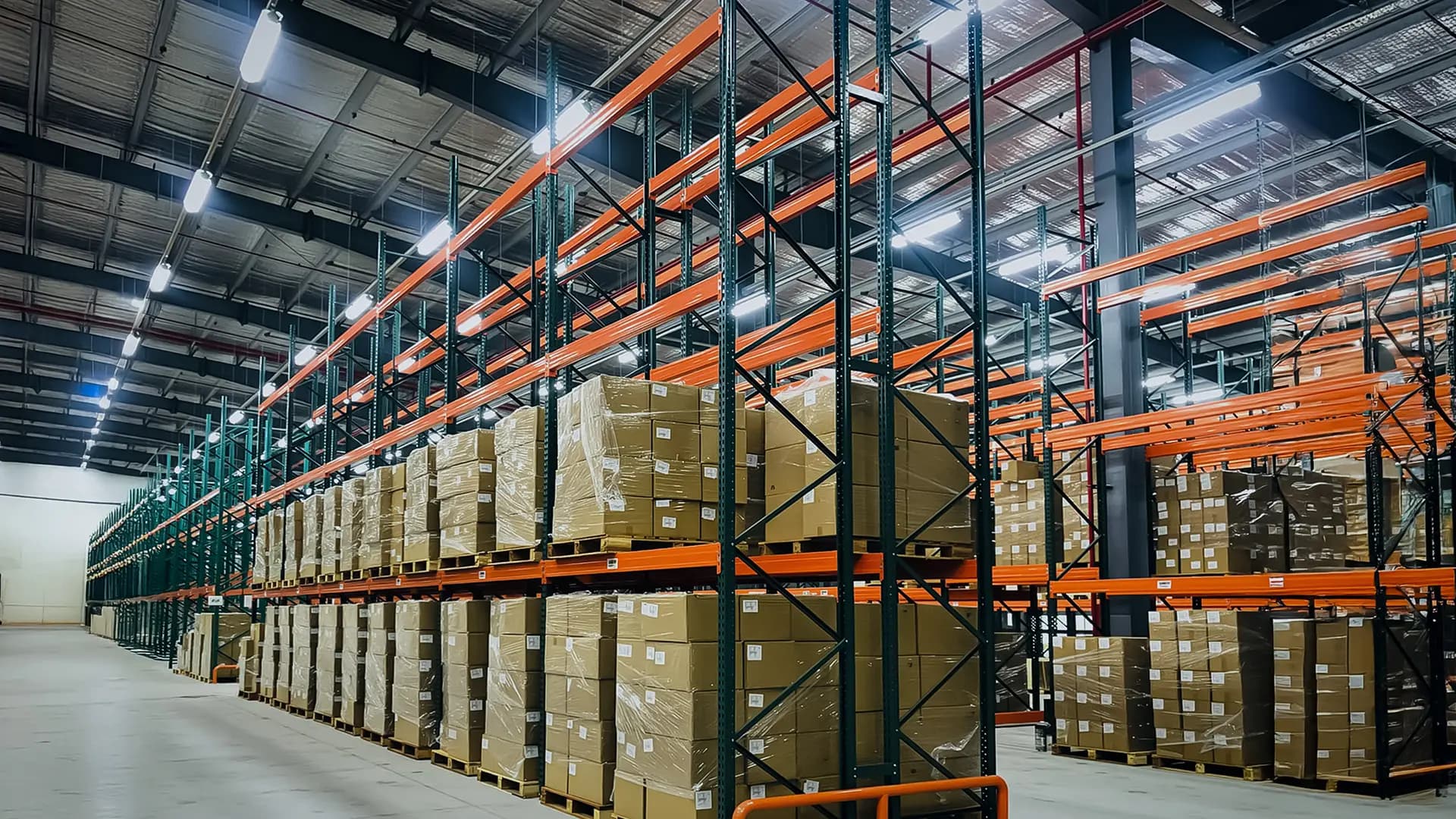

Your inventory changes size, so your racks need to change too. Teardrop uprights let you knock out a safety pin and adjust beam levels in minutes without heavy tools. Keep your Springfield, IL storage layout flexible and ready for anything.
- ✓Seasonal inventory environments
- ✓Operations handling mixed pallet heights
Throwing heavy loads on teardrop beams without verified ratings will get your Springfield warehouse shut down. The Building & Zoning (Public Works) checks your beam capacities during audits. Reach out to them at (217) 789-2255 or visit 300 S. 7th St, Room 201, Springfield, IL 62701 to lock in your paperwork near The global center for Lincoln research and history.. SEISMIC: Make sure your teardrop frames have the right baseplates installed to withstand a major seismic event.
Standard Technical Specifications
To assist in your initial facility design, layout, and CAD planning, WDRacks supplies a wide range of standard, durable industrial storage components:
| Component | Standard Range | Springfield, IL Specs |
|---|---|---|
| Upright Frame Heights | 8 feet to 35+ feet | Tailored to match local clearance height limits in Springfield. |
| Upright Frame Depths | 36", 42", and 48" depths | Custom-spaced steel frames optimized for IL warehouses. |
| Upright Frame Capacity | Up to 45,000 lbs capacity | Rated up to 45,000 lbs (subject to localized seismic calculations). |
| Step Beam Span Lengths | 4' (48") to 12' (144") spans | In-stock inventory ready for dispatch to your Springfield facility. |
| Shelf Level Load Capacity | 2,500 lbs to over 8,000 lbs per pair | Standard teardrop and heavy structural options available in IL |
| Seismic Bracing | Configured per localized seismic zone | Engineered baseplates scaled to meet municipal codes in Springfield. |
| Local Permitting Agency | Local Building & Fire Department | Certified submittals coordinated directly with Springfield building inspectors. |
Securing Beams with High-Strength Safety Clips
An upward forklift strike will dislodge a beam instantly if it is not secured properly. We supply teardrop beams equipped with factory-installed, heavy-duty safety clips that physically lock the beam to the upright, preventing catastrophic dislodgment during heavy loading.
Yield Strength Optimization via Teardrop Pallet Racking
Maximizing the structural efficiency of teardrop pallet racking necessitates comprehensive profiling of the roll-formed steel cross-sections and baseplate anchoring metrics. Erecting this matrix in a Springfield warehouse demands meticulous calculation of the unbraced span lengths to mitigate localized column buckling under high-capacity cyclic static loads.
- ✓Profile roll-formed steel cross-sections for localized buckling resistance.
- ✓Calculate maximum unbraced span lengths under cyclic static loads.
- ✓Optimize baseplate anchoring metrics for structural efficiency.
Technical Inquiry: Q&A
Question
"Is the yield strength of cold-rolled teardrop uprights compromised when retrofitting legacy racking systems with modern high-capacity beams in Springfield, IL?"
Holden Conner Senior Estimator & Material Quote Specialist
Retrofitting introduces the risk of metallurgical incompatibility. Engineers must verify the gauge thickness and steel tensile strength of the legacy upright frames. If the new high-capacity beams induce stress beyond the original frame's critical buckling threshold, the entire matrix will fail under maximum payload.
Hassle-Free Warehouse Expansions
Expanding your storage near I-55 & I-72 / Sangamon County Logistics is completely stress-free with our dedicated project managers. We bring our own installation crews and flexible schedules to ensure your Springfield operations keep running smoothly. Reach out today for a friendly conversation.
Teardrop Rack Compatibility FAQ
Q: Why is teardrop racking the standard in Springfield warehouses?
Q: Can I mix old and new teardrop steel?
Q: Is teardrop racking hard to assemble in Springfield?
